3 Symptoms of a Bad Blend Door Actuator (and Replacement Cost)
When it comes to the comfort of your vehicle’s cabin, few components are as important yet unseen as the blend door actuator. Hidden behind your dashboard, it’s the reason you can adjust your car’s temperature with the press of a button.
When it stops working correctly, your vehicle’s entire heating and cooling system can be affected, leaving you either too hot or too cold regardless of how you set the controls. Read on to learn about the signs of blend door actuator failure, and how much it’ll cost to fix.

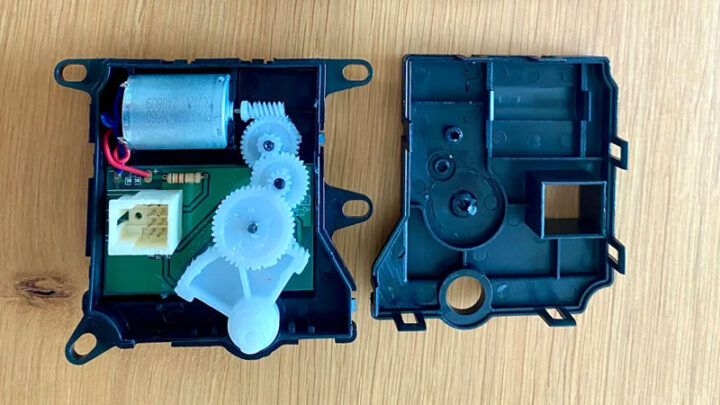

What Is a Blend Door Actuator?
A blend door actuator is an electric motor that rotates or indexes in response to driver-initiated inputs, thereby repositioning a vehicle’s blend door as necessary.
In past years, many blend door actuators were mechanically controlled via cabled connections and a lever you would slide left or right (or up and down). However, this design has been phased out in near universal fashion, in favor of the use of simplified electronic actuators like these described above.
How It Works
A vehicle’s blend door actuator is operated via dash-integrated electrical switches. These switches deliver a signal to the blend door actuator, which responds accordingly, positioning the blend door itself as necessary to regulate the amount of warm air allowed into the cabin of the vehicle.
The positioning of a vehicle’s blend door is an essential element to a properly working HVAC system, making the component critical to your vehicle’s climate control. Its position controls how much warm air from the heater core can flow into your vehicle’s cabin.
Location
The blend door actuator in most vehicles is generally located behind the dash, specifically on the passenger side of the vehicle. This actuator is traditionally mounted to the climate control casing.
The exact positioning of this actuator along the climate control box differs by make and model of vehicle, increasing the importance of having a vehicle-specific service manual on hand before attempting any repairs.
Bad Blend Door Actuator Symptoms
Blend door actuator failure is often accompanied by a host of underlying symptoms, some of which tend to be more prominent than others. Being able to recognize these symptoms early can help you diagnose the problem quickly and accurately.
#1 – Lack of Temperature Control Response
One of the most common symptoms of blend door actuator failure is a relative lack of response changes in temperature, as initiated by these vehicle’s occupants.
In many cases, this will appear to the average motorist as an inability to regulate cabin temperatures, despite making all necessary settings adjustments. Additionally, you might also notice that cabin temperatures appear erratic, or inconsistent.
#2 – Abnormal Noises When Adjusting Temperature
Another common sign of blend door actuator failure pertains to hearing abnormal sounds from behind the passenger compartment of you vehicle’s dash while attempting to make temperature adjustments.
These sounds often take the form of “clicking” or “grinding” as corresponding gearsets within the actuator itself fail to mesh as designed. This symptom will often be combined with a lack of perceivable temperature control as described above.
#3 – Inconsistent Temperatures (Dual-Climate Control)
Many late model vehicles now come standard with dual climate control (or even 3 zones), allowing different occupants to set their own desired settings. Systems of this configuration commonly employ the use of multiple blend door actuators.
For this reason, you may notice that one zone of a vehicle’s cabin feels less responsive to commanded climate control adjustments, than others, when a blend door actuator begins to fail.
Replacement Cost
Best places to order parts? See: 19 Best Online Auto Parts Stores
The exact cost of blend door actuator replacement differs from one make and model of vehicle to the next. However, on average, one can expect to pay between $250-$450 to have their vehicle’s blend door actuator replaced.
A new blend door actuator itself typically costs between $50-$150, while the remaining costs are attributed to labor.
In certain instances, you may be able to save money on a repair of this nature, when handling replacement in DIY fashion. However, you’d be best advised to study all pertinent repair procedures via a model-specific service manual before attempting any such repairs. In certain cases, specialty tooling will be required to successfully replace components of this type.
Diagnosing Blend Door Actuator Problems
The following steps can be used to assist in the diagnosis of a faulty blend door actuator. Again, it’s highly recommended to consult a factory-specific service manual for your particular model of vehicle before proceeding.
#1 – Check Temperature at Vents
Begin by setting the climate control to a specific temperature, before placing a digital or analog temperature probe in the vehicle’s air duct.
You are not looking for the air duct temperature to match that requested at the control head. However, you are attempting to ensure that the temperature at this duct does rise and fall in an unexplained manner.
If this is observed, a potential blend door issue might be to blame.
#2 – Locate Blend Door Actuator
If a blend door actuator failure is suspected, the next priority will involve locating the actuator itself. While this location can differ slightly between vehicles, most blend door actuators are found mounted to the behind-dash climate control box itself.
You’ll typically need to remove some trim panels to access it, usually starting with the lower dash panel or glove box on the passenger side. Look for a small motor-like component about the size of your palm, usually black or gray in color, with an electrical connector attached to it.
In some vehicles, you may need to remove additional components like the radio or center console to gain proper access. This is why having a service manual specifically for your vehicle is so important for this step as it will show you exactly which panels to remove and in what order.
#3 – Back-probe Wiring at Connector
Once you’ve located your vehicle’s blend door actuator, it is advisable to confirm that power, ground, and signal circuit communication is present at its corresponding connector. This can be done by back-probing each individual leg of the circuit, with the connector in question still engaged.
Factory-specific service literature should be consulted for the model of vehicle under diagnosis, to ensure that all readings fall within manufacturer-published acceptable thresholds.
#4 – Proceed Diagnosis Dependent Upon Results
If the tests above yielded no response from the affected vehicle’s blend door actuator, despite all necessary inputs being present, blend door actuator replacement will be necessary. However, if corresponding power, ground, or signal feeds proved absent under testing, further circuit diagnostics will be required.
Causes of Failure
Several factors can lead to blend door actuator failure over time:
- Gear Strip/Wear – The most common cause is internal gear wear. The small plastic gears inside the actuator can strip or break down over time from repeated use, especially if the blend door encounters resistance when moving. When these gears fail, you’ll often hear the clicking or grinding noises mentioned earlier.
- Electrical Issues – The actuator’s internal electrical components can fail due to voltage fluctuations or general wear. This typically results in the actuator becoming completely unresponsive to temperature adjustment inputs.
- Physical Obstruction – Sometimes debris can enter the HVAC system and prevent the blend door from moving freely. When this happens, the extra strain on the actuator’s motor can cause premature failure. This is one reason why regularly replacing your cabin air filter is important.
- Age and Usage – Like any mechanical component, blend door actuators simply wear out over time. Vehicles in climates with extreme temperature swings tend to experience faster wear due to frequent temperature adjustments.
- Environmental Factors – Excessive heat and humidity in the engine compartment can sometimes affect the actuator’s electrical components and internal lubrication, particularly in vehicles where the actuator is mounted closer to heat sources.
Frequently Asked Questions
Can I drive with a bad blend door actuator?
Yes, you can safely drive with a faulty blend door actuator. While it won’t affect your vehicle’s mechanical operation, you might experience significant discomfort due to inability to control cabin temperature. This can be particularly uncomfortable during very hot or cold weather.
How long does the replacement procedure typically take?
A professional mechanic will likely need 1 to 3 hours to replace a blend door actuator, depending on the vehicle. Some cars require extensive dashboard disassembly to access the component, while others offer relatively straightforward access through the glove box area.
Are aftermarket blend door actuators reliable?
While aftermarket actuators are generally less expensive than OEM parts, their quality can vary significantly. Many mechanics recommend using OEM parts for this repair, as the price difference is often minimal and factory parts typically offer better reliability and fitment.
As with any repair that requires a good amount of labor time, using a high quality part reduces the chance of having to replace the replacement and the high labor costs that come with it.
Will a bad blend door actuator affect other HVAC components?
No, a failed blend door actuator typically won’t damage or affect other HVAC components. However, the symptoms of a bad actuator can often be similar to other HVAC issues (such as your A/C not blowing cold air or a lack of heat). This makes proper diagnosis crucial before replacing any parts.
What happens if I don’t replace a failing blend door actuator?
Initially, you may only experience inconsistent temperature control or unusual noises. But over time, the actuator may fail completely, leaving the blend door stuck in one position.
This could mean being stuck with cold air blowing in the middle of winter in Michigan or full heat blowing on a hot Arizona afternoon.
Can cold weather cause blend door actuator failure?
While extreme temperatures don’t directly cause actuator failure, the increased usage of your HVAC system during cold weather can accelerate wear on an already weakening actuator. This is why many drivers first notice problems during seasonal changes.
