4 Reasons Your Tachometer Isn’t Working (and Repair Costs)
Most car owners are well aware of the key role that their vehicle’s tachometer plays in monitoring engine speed. However, few give this component much thought until it fails.
Read on to learn about the symptoms of tachometer failure, their underlying causes, what it’ll cost to fix, and whether or not you should continue driving.
See Also: 4 Causes of Speedometer Failure
How a Tachometer Works
A vehicle’s tachometer is used to monitor overall engine speed, in the form of revolutions per minute (RPM). This measurement can prove essential when attempting to prevent engine damage from over-revving and for determining optimal shift points while driving a vehicle with a manual transmission.
Tachometers have evolved significantly over the years. Early models were cable-driven, similar to speedometers of the same era. These mechanical tachometers were often less than accurate and did not afford the smooth and seamless readings that most are used to today.
Modern tachometers are electronically controlled, picking up engine speed readings from the vehicle’s ECM/PCM (Engine/Powertrain Control Module) via feedback from the engine’s camshaft and crankshaft sensors. This electronic design provides extremely accurate readings, as virtually all mechanical variables are removed from the equation.
Read Also: 16 Types of Gauges In a Car
Common Tachometer Symptoms
Before we discuss the causes of failure, it’s helpful to understand how tachometer issues manifest. When a tachometer fails, it typically exhibits one of several distinct symptoms:
- Needle Stuck at Zero – Perhaps the most common symptom, a tachometer needle that remains fixed at zero regardless of engine speed or operating conditions.
- Stuck at a Specific RPM – The needle becomes fixed at a particular reading, neither rising nor falling even as the engine speed changes.
- Erratic Movement – A tachometer that jumps sporadically or moves unpredictably without corresponding to actual engine RPM changes.
- Intermittent Operation – A tachometer that works occasionally but fails at other times, sometimes responding to engine speed changes and sometimes not.
- Inaccurate Readings – When the tachometer functions but displays RPM values that clearly don’t match the engine’s actual speed.
Understanding these specific symptoms can help you identify your particular tachometer issue before diving into potential causes and solutions.
Common Causes of Tachometer Failure
A vehicle’s tachometer can fail for various reasons, some of which tend to be more difficult to discern than others. Understanding these possible modes of failure will assist you in coming to an accurate diagnosis, in a reasonable period of time.
#1 – Internal Instrument Cluster Failure

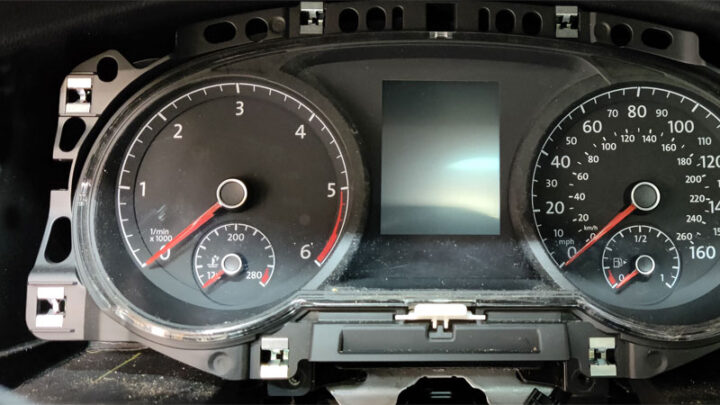

It is actually quite common for the source of tachometer failure to be traced back to the tachometer itself, or the vehicle’s instrument cluster as a whole. Frequently, the cluster’s internal stepper motor will fail, preventing tachometer actuation.
Common symptoms: This type of failure typically shows itself as a needle stuck at zero, regardless of engine speed. In some cases, you might also observe erratic movement of the needle as the stepper motor struggles to function properly.
#2 – Compromised Wiring
Another common cause of tachometer failure relates to Compromised wiring between a vehicle’s ECM/PCM and instrument cluster. This can occur through the accumulation of corrosion or even damage incurred by mice or other rodents. Without continuity across this circuit, tachometer functionality will suffer.
Common symptoms: Compromised wiring often results in intermittent operation of the tachometer, erratic needle movement, or a tachometer that’s completely unresponsive (stuck at zero). The symptoms may worsen when the vehicle encounters bumps or vibrations that further disrupt the damaged connections.
#3 – Speed Sensor Failure
Most tachometers are provided with a variable signal via a vehicle’s engine speed sensor. This signal is often derived from the camshaft or crankshaft position sensor. Therefore, tachometer operation can stall, in the event that these critical sensors were to fail.
Common symptoms: When a speed sensor fails, the tachometer typically displays inaccurate readings or becomes completely unresponsive (stuck at zero). Unlike wiring issues, the problem tends to be consistent rather than intermittent. Additionally, speed sensor failure often triggers check engine lights and may cause other driveability issues beyond just tachometer failure.
#4 – Loose Connections
Though somewhat rare, it is possible for loose connections at a vehicle’s instrument cluster to serve as the underlying cause of an inoperable tachometer. In these cases, the loose or incomplete connection fails to allow valuable electrical inputs to be conveyed to the instrument cluster itself.
Common symptoms: Loose connections typically cause intermittent tachometer operation. The needle might suddenly drop to zero or jump to incorrect readings while driving, especially when the vehicle experiences vibration or changes in temperature that affect the connection quality.
Repair Costs
The exact cost associated with repairing an inoperable tachometer can vary significantly, based upon variances in parts costs between vehicles of differing make and model, and even due to variables in the mode of failure itself. Generally, you can expect to pay between $100-$450 to restore your tachometer to working condition.
The lower end of this cost analysis pertains to the repair of basic electoral issues, such as corroded or otherwise compromised connectors within the affected circuit, or faulty engine speed sensors. On the other hand, you can expect to pay more toward the upper end of this scale (or more), should the tachometer portion of your vehicle’s instrument cluster require repair.
Is It Safe to Continue Driving?
In most cases, yes, you can safely continue driving with an inoperable tachometer, assuming no other driveability issues are present.
This being said, you must be careful to prevent potentially catastrophic over-revving by listening to engine sounds to estimate RPMs. This is especially important when operating a vehicle with a manual transmission.
Despite continued driving in this state being possible, you should always opt to diagnose and repair your tachometer issue as soon as possible. Doing so can prevent unnecessary engine stress and mechanical damage, especially if the engine in question is paired with a manual transmission.
Diagnostic Process (Step-by-Step)
The following steps can help you diagnose the root cause of your vehicle’s inoperable tachometer. Before beginning, it’s recommended to have your vehicle’s factory service manual on hand for reference.
#1 – Inspect Electrical Connections to Tachometer
Begin by carefully inspecting the electrical connector the the backside of your vehicle’s instrument cluster. Ensure that no corrosion is present, and the connector itself is firmly secured.
#2 – Check for Power Delivery
Next, use a digital multimeter to check for a constant positive feed to the instrument cluster/tach. If this feed is not present, you must troubleshoot power distribution to the instrument cluster itself.
#3 – Verify Signal Delivery
If a constant positive feed is present at the instrument cluster/tach, you must then verify that an AC signal voltage is also present at the tachometer. This signal will vary in voltage, to mirror fluctuations in engine RPM.
#4 – Have Instrument Cluster Qualified
If all inputs are present at the instrument cluster as specified by the affected vehicle’s manufacturer, the problem itself likely lies in the vehicle’s instrument cluster/tachometer. In most cases, it will be necessary to have the instrument cluster sent off for qualification and remanufacturing.
